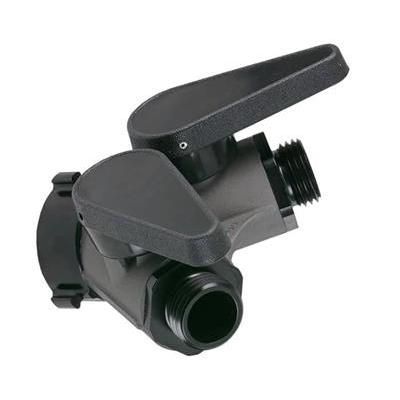

Task force tips AYLND-ND GATED WYE LONG VALVE HANDLES

Technical Specification

Features:

Make: Task Force Tips
Model code: AYLND-ND
Inlet Size (in.): 1.0
Type: Wye

Additional info:

FORESTRY GATED WYE has a cast aluminum body with 1” (25mm) ball type valves and optional long or short nylon valve handles. Hard coat anodized finish. Inlet and outlet threads are available in various combinations of 1” & 1.5” NH and NPSH. Pressure tested to 1000 psi (70 bar) and is 5” (12.7cm) long by 5.5” (14cm) wide, excluding handles. See charts below for model numbers. NPSH threads available at no extra cost. Please specify NPSH in description. Coupling Size Side A - 1" (25 mm) Coupling Size Side B - 1" (25 mm) Coupling Swivel Side A - Non-Full Time Swivel Coupling Swivel Side B - Rigid L D H Inlet - No L D H Outlet - No Type - Wyes Valve Design - Ball Valve Nylon Weight - 2.1

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Task Force Tips
Manufacturer	Task Force Tips Inc.
Category	Fire Protection>Valves
Model code	AYLND-ND
Inlet Size (in.)	1.0
Type	Wye
Additional info	FORESTRY GATED WYE has a cast aluminum body with 1” (25mm) ball type valves and optional long or short nylon valve handles. Hard coat anodized finish. Inlet and outlet threads are available in various combinations of 1” & 1.5” NH and NPSH. Pressure tested to 1000 psi (70 bar) and is 5” (12.7cm) long by 5.5” (14cm) wide, excluding handles. See charts below for model numbers. NPSH threads available at no extra cost. Please specify NPSH in description. Coupling Size Side A - 1" (25 mm) Coupling Size Side B - 1" (25 mm) Coupling Swivel Side A - Non-Full Time Swivel Coupling Swivel Side B - Rigid L D H Inlet - No L D H Outlet - No Type - Wyes Valve Design - Ball Valve Nylon Weight - 2.1
