Rough seas with wave heights up to 50% above the stipulated heavy weather testing requirements proved no obstacle for VIKING’s innovative LifeCraft™ system, paving the way for cruise ship operators worldwide to benefit from all the advantages that this new hybrid - intended to replace lifeboats/liferafts - has to offer.
It is considered to be the most exciting innovation in passenger evacuation systems in decades – and now, despite unusually challenging test conditions, the VIKING LifeCraft™ system has passed an important milestone in its journey to commercial use following the conclusion of a demanding full-scale Heavy Weather Sea Trial (HWST).
Maritime safety equipment
Developed and extensively tested by maritime safety equipment and servicing provider VIKING Life-saving Equipment over the past 10 years, the new evacuation system unites the advantages of modern lifeboats – such as self-propelled maneuverability – with the flexibility, comfort and smaller footprint of current liferafts combined with marine evacuation systems.

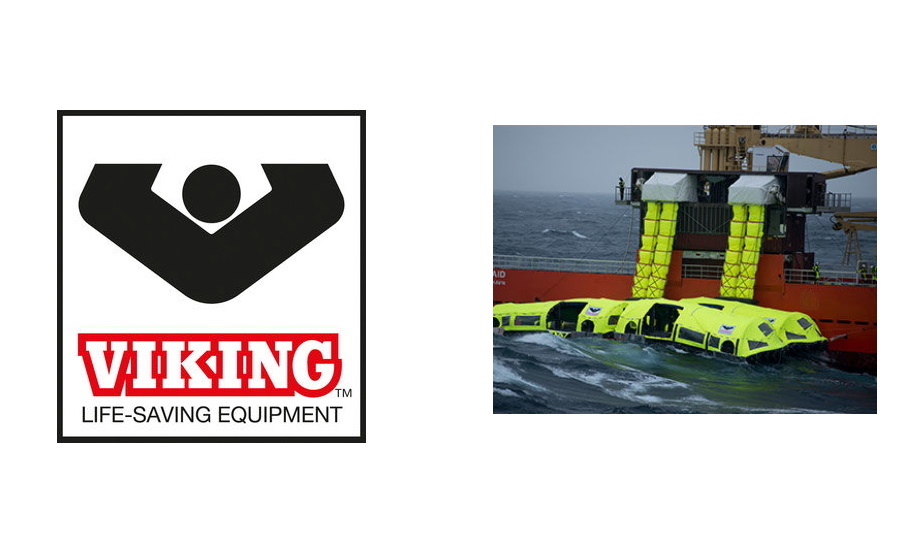

Four inflatable VIKING LifeCraft™ survival crafts each with a capacity of 203 persons
The solution comprises two main elements: four inflatable VIKING LifeCraft™ survival crafts each with a capacity of 203 persons, so 812 in total, and a fully self-contained stowage and launching appliance either placed on deck or built into the ship’s side. And it’s packed with a long list of innovations that take the system far beyond the capabilities of existing lifeboats, marine evacuation systems or liferafts.
Simulated dead ship condition
“The HWST involved launching and testing how well the LifeCraft™ system performs in high winds, stormy seas and extreme weather conditions,” explains Niels Fraende, VP Cruise & LifeCraft™. “We launched the LifeCraft™ with the ship heading 3 knots up against the wind, exposing the system to the full force of the fierce weather in the most critical test phase. We then demonstrated – with a simulated dead ship condition – that the fully loaded LifeCraft™ system provides a safe and stable means of evacuation in both the weather and lee side for several hours.”
“In addition, we quickly and successfully maneuvered the LifeCraft™ survival crafts on both sides of the vessel to a safe distance, demonstrating their built-in flexibility to move rescue-capacity to wherever it is most needed. Simulating station-keeping while waiting for rescue, we performed a 24-hour controlled drift test in the battering seas with no damage sustained to the survival crafts.”
Battling sea-Sickness
Heavy weather is exactly what nature delivered at the testing location on the North Sea between southern Norway and United Kingdom. In fact, after being ballasted with 70 tons to simulate full capacity, the LifeCraft™ was subjected to brutal wind gusts with speeds of up to 18 m/s in addition to significant wave heights of between 3.6 and 4.6 meters.
Niels Fraende is elated that the LifeCraft™ system performs so well under such demanding conditions
Towering peak waves of 10 meters greatly exceeded the required 3 meters needed for the trials, with the personnel from VIKING and DNV GL battling sea-sickness and heaving decks to conclude the tests. The HWST consisted of multiple phases, all of which were witnessed and approved by the attending DNV GL senior surveyor acting on behalf of the Danish Maritime Authority. And, with the toughest test ever behind VIKING, Niels Fraende is elated that the LifeCraft™ system performs so well under such demanding conditions.
Providing exceptional stability
“The LifeCraft™ exhibited superior maneuverability, sailing away from the ship much faster than required. We achieved this with the wind at our front as well as our backs, which makes it an even more impressive feat,” says Niels Fraende. The tests demonstrated, too, that the system’s flexible chute arrangement could easily cope with the ship’s list and trim, providing exceptional stability despite the highly dynamic sea state. With its four electric motors, one positioned at each corner, the fully loaded LifeCraft™ was swiftly maneuvered to a safe position within minutes of disengagement from its position along the ship’s side.
The trial afforded crew members the opportunity to demonstrate, under extreme conditions, the capability of the chute arrangements that provide a controlled vertical passage from the embarkation point to the LifeCraft™ survival crafts. All landed safely in the LifeCraft™ unit at the expected evacuation speed, dry and unbrushed by the elements.
Inflatable survival crafts
The VIKING LifeCraft™ system’s development journey began in 2009. Over the best part of a decade more than 50 prototypes were created and put through their paces undergoing a battery of tests, which, among other punishments, employed jet engines to assess how well they stood up to 150 km/h winds.
The four inflatable survival crafts are powered by electric motors instead of diesel-driven units
Crucially, the four inflatable survival crafts are powered by electric motors instead of diesel-driven units. These not only enable excellent maneuverability for reaching a safe position or for rescuing passengers or ship personnel in the water, but are quieter in operation and more reliable, requiring far less maintenance. They also pose less of a fire risk and reduce evacuees’ exposure to harmful fumes. Inside, there’s strong focus on comfort, with triple the air space of existing lifeboat solutions, for example, and a novel natural ventilation system.
Allowing greater flexibility
From a ship design perspective, the system is a significant space-saver, taking up around 25% of the necessary deck space compared to the equivalent capacity in lifeboats.
This compact footprint is in itself a compelling argument for cruise ships as it frees up space for additional berths or passenger amenities. Furthermore, by enabling the positioning of evacuation capacity on both sides of a ship, something which simply isn't possible with conventional lifeboats, the system surpasses SOLAS requirements and allows greater overall flexibility in vessel design.
