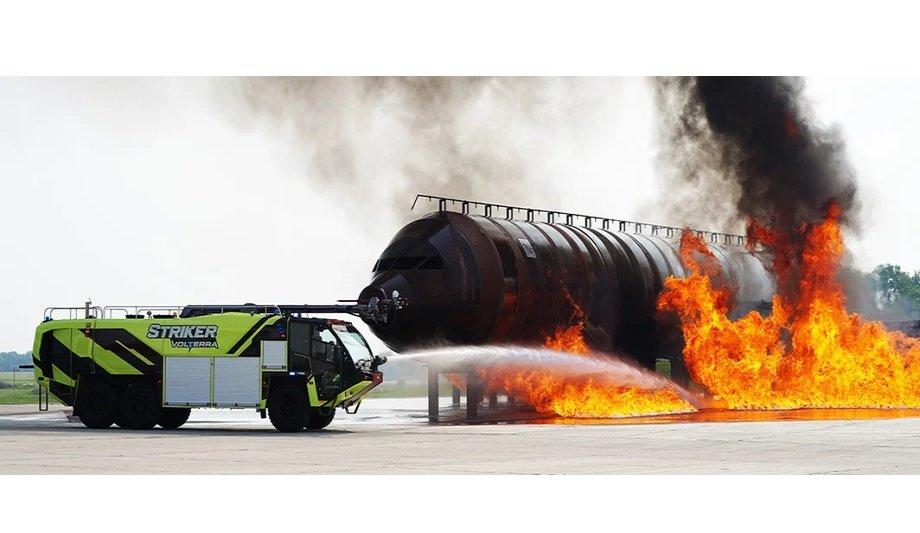

Oshkosh's Advanced CAFS For ARFF Fire Suppression

Using water for firefighting is the most common and recognizable method of suppressing fires. This simple agent is very effective in fighting class A fires, which are fueled by ordinary combustible materials.

Many residential and commercial structures use and contain these materials making water very efficient in these environments. However, water is ineffective against class B and class C fires, which are most common at an airport emergency scene.

Flammable jet fuel

Airport firefighters are required to control and extinguish fires involving highly flammable jet fuel. Water could potentially make this type of fire worse because fuel will rise to the top of the water, enabling it to continue burning and spreading as the water moves.

Firefighting agents are required to suppress these types of fires, but water may still play a role. It is often mixed with the agents and used as a propellant to deploy the additional agents onto the fire.

• Firefighting Foam

Firefighting foam was invented in the early 1900s and has evolved into various forms for different types of fires. Class A foam was originally made for use against forest and wildfires and is used against class A fires.

Class B foam is designed for class B fires, and ARFF foam is part of this category. It has a low viscosity and can cover large amounts of spilled or burning jet fuel in a short period. The foam allows firefighters to coat the materials burning or are at risk of burning, which cuts off the oxygen supply a fire needs. Class B foam is also designed to contain the explosive vapors produced by flammable liquids, particularly the jet fuel ARFF trucks may encounter at an airfield.

• Compressed Air Foam for ARFF Vehicles

CAFS is not new in the use of structural fires; however, in recent years, it has been tested and proven effective

In an ARFF emergency scenario, fire suppression agent conservation is critical because, in most cases, everything needed must be transported to the scene and contained within the apparatus and equipment.

Compressed Air Foam Systems (CAFS) are not new in the use of structural fires; however, in recent years, it has been tested and proven effective for use in Class B/fuel fires.

Turrets and nozzles

Traditionally, ARFF crews operated using aspirating turrets and nozzles. CAFS provides a simple system where air is injected into the water/foam solution before moving into the piping of the turret or hose line.

Pressurized air injected into the water and foam solution expands the foam many more times than a conventional aqueous film-forming foam (AFFF) nozzle which relies on mechanically mixing ambient air with the water and foam solution at the nozzle. The result is a CAFS which has a thicker consistency and creates a superior foam blanket with a lower amount of water required.

Onboard air compressor

Oshkosh Airport Products’ CAFS system uses an onboard air compressor which offers unlimited firefighting capability without having to recharge air cylinders.

The attributes of the CAFS allow the foam to cling to vertical surfaces and provide a highly effective insulating effect. Thicker foam blankets mitigate fuel vapors for extended periods, and higher expansion ratios mean responders need less water. In recent years, Oshkosh Airport Products has experienced increased industry demand and curiosity for CAFS and has a system ready to be incorporated in ARFF vehicle configurations.

• Dry Chemicals

Dry chemicals offer firefighters another option for attacking different classes of fire. The Oshkosh Striker® ARFF offers water and foam deployment as standard options, while dry chemical is a specified option on the vehicles. They are primarily made from potassium and sodium bicarbonate, and ARFF trucks can carry several different types:

• ABC chemical
• BC chemical
• Purple K

Dry chemicals are frequently used in industrial or airfield settings, where chemical and electrical fires are most likely to occur, which includes an airport environment. The suppression agent can be deployed using pressurized nitrogen or introduced to the water stream, which can carry the firefighting agents to the target area.

ABC chemical

Purple K is typically used in high-hazard-risk areas such as oil refineries, service stations

ABC chemical is the most versatile and can be used to suppress all types of fires. It is yellow and particularly effective on combination fires. BC chemical refers to an agent suitable for class B or C fires and is blue, and a free-flowing, non-abrasive, water-repellent that produces no toxic effects.

Because of its fast extinguishment properties on flammable liquid fires, Purple K is typically used in high hazard-risk areas such as oil refineries, service stations, naval warships, power plants, airports, and other places where large volumes of flammable liquids are handled. Like its name, the fire suppressant is the color purple.

Clean Agents

Some firefighting agents used in ARFF fire suppression, such as certain types of foam, can contain substances that may hurt the environment. Dry chemicals are only used when necessary due to the fine particulates that can spread easily over a large area.

Cleanup of these agents can be costly and time-consuming. For this reason, clean agents can help mitigate potential environmental harm while still safely and effectively suppressing fires.

Fire suppression options

Clean agents are gases and work by removing the oxygen from the air around the fire. They are useful for electrical and engine fires, and because they are gas, won’t further damage the materials being extinguished.

The Oshkosh Striker ARFF can be built to carry all types of fire suppression options, allowing crews to quickly switch between various types of firefighting agents.

Eco EFP™ Test System

Eco EFP system, allows for the testing of a vehicle’s foam system to determine if the system is properly proportioning

Testing and training are essential for ARFF crews to ensure efficiency when faced with a real emergency scenario. In testing and training situations, firefighting agents can present unnecessary environmental risks and cleanup costs.

Oshkosh Airport Products’ innovative electric foam proportioning system, named the Eco EFP system, allows for the testing of a vehicle’s foam system to determine if the system is properly proportioning, without requiring foam to be discharged from the vehicle.

Reduced environmental impact

It measures both the solution and foam flows on the vehicle and archives the testing data with a time and date stamp. This reduces the environmental impact of foam testing and reduces the cost of cleaning up the foam solution after the test.

The Federal Aviation Administration (FAA) has approved the Eco EFP system to be used for testing and training purposes. The system shows the truck is working as it is intended without having to expel a foaming agent.

Training for ARFF Fire Suppression

Knowing which firefighting agent to use and when to use it is a crucial part of training for all ARFF crews.

In the United States, the FAA requires a specific curriculum for airport firefighters. The training is repeated each year as part of a recertification process.
